Warp Knitting Machine Prototype



I created a threading mechanism for an at home warp knitting machine that decreases the loading time by 45%

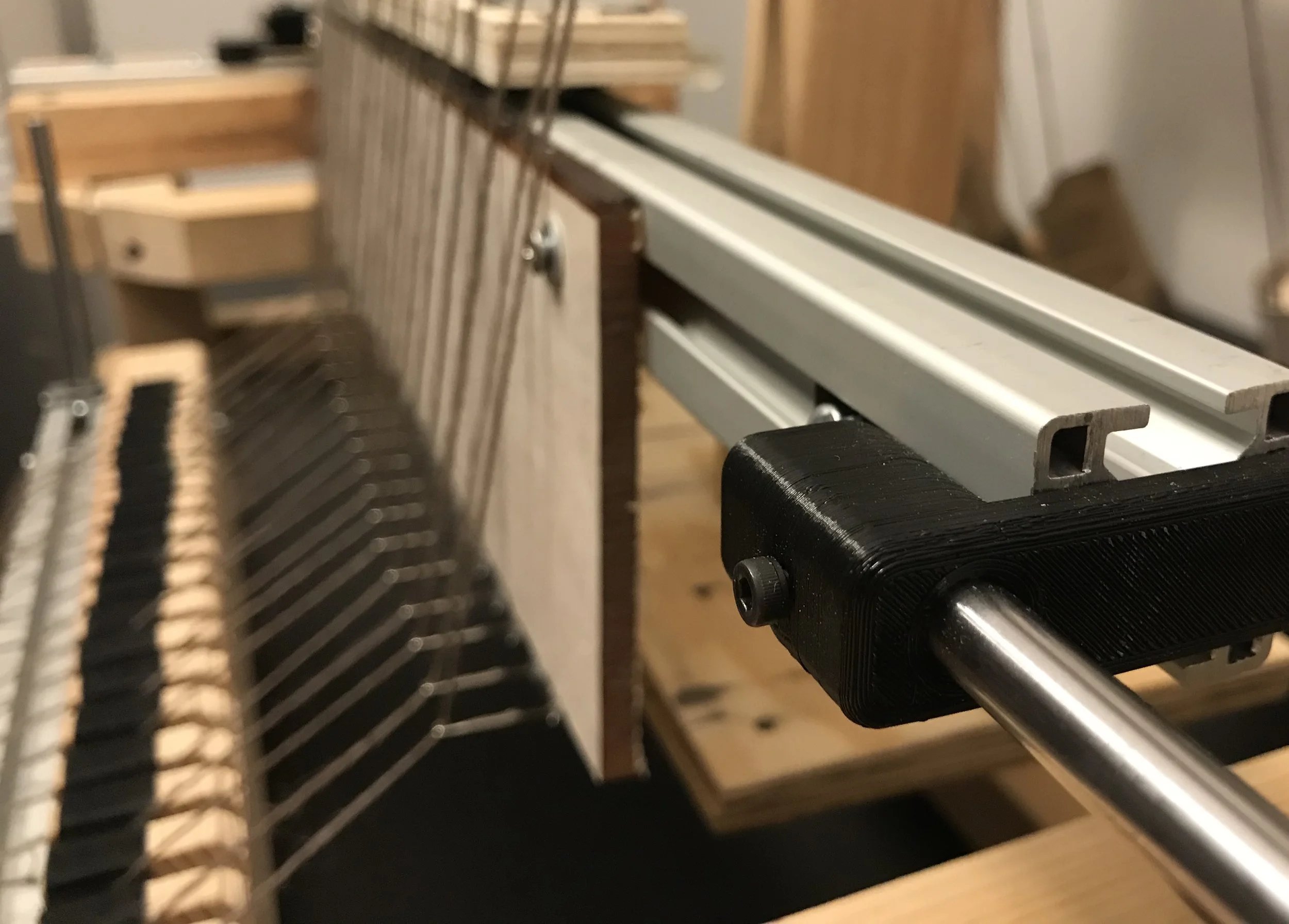

 I designed 3D printed inserts to attach the extruded aluminum to the linear shafts.

I designed 3D printed inserts to attach the extruded aluminum to the linear shafts.

 The machine achieved fine movements, allowing all 20 eyelets to be threaded all at once.

The machine achieved fine movements, allowing all 20 eyelets to be threaded all at once.
